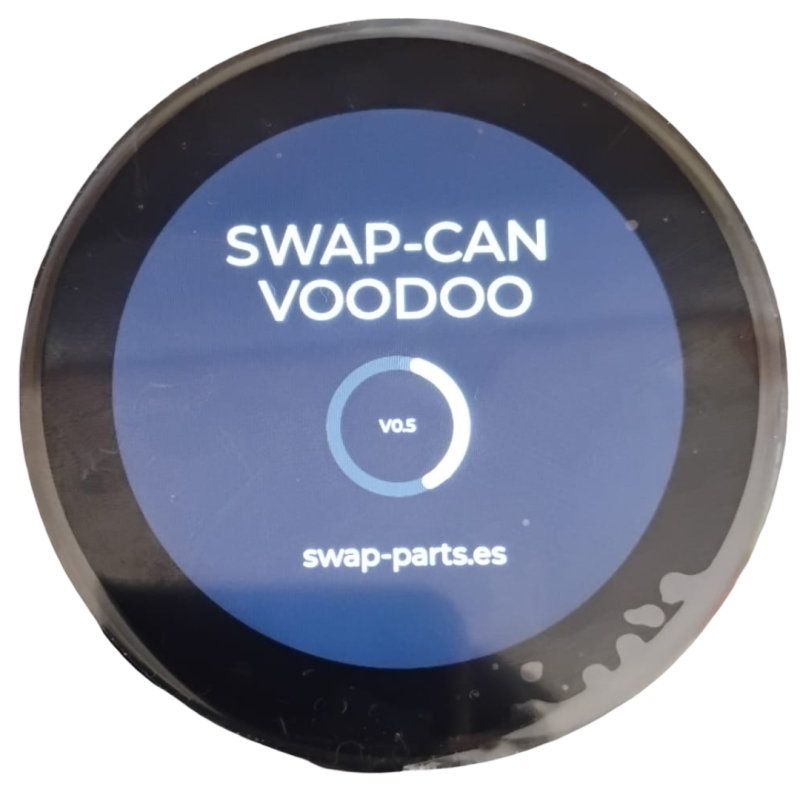

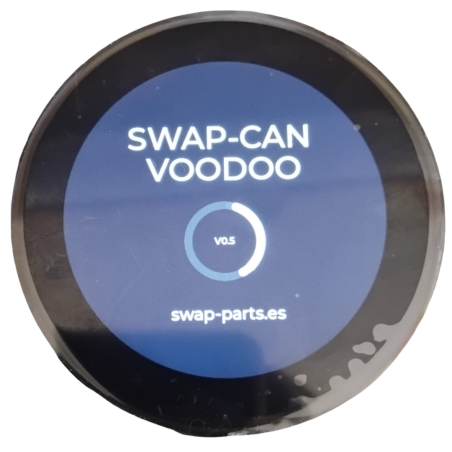

[PRE-SALE] Swap-CAN Voodoo

Swap-CAN Voodoo* is a CAN data display for Trionic 5 ECUs installed in the following vehicles:
- Saab 9000 (1994-1998)
- Saab 900 (1994-1998)
- Saab 9-3 (1998-2000)
- Any swapped vehicle with one of these units.

Applicable to 16 and 20 MHz versions of Trionic 5.
The Voodoo version offers the highest performance, as in addition to displaying data on the 2.1-inch LCD screen, it can also make changes to the control unit's SRAM, modifying limiters (e.g., rev limiter) or maps.** ***
The data displayed is fully configurable. After purchasing the device, you can request to monitor any ECU symbol that is not already monitored.
Currently we have: (the list will be updated, you can search for all symbols in the Trionic 5 PDF on page 101)
-Rpm_max → Fuel cut-off rpm
-Rpm → Current engine rpm
-P_manifold → Intake pressure
-Batt_volt → Battery voltage
-Lufttem → Intake temperature
-Lyl_temp → Coolant temperature
-Bil_hast → Vehicle speed
-AD_EGR → Monitors voltage on pin 69, this is normally where the external AFR clock is connected
-Gear → Current gear
-Regl_tryck → Target pressure
-Pwm_ut → APC valve PWM

Regarding runtime SRAM modifications, we have:
-Modifying Rpm_max based on a potentiometer and a button to activate the new value.

All values ​​have audible alarms.
Data logs can be recorded and viewed with T5Suite.

Estimated delivery date: January 29, 2026
Price after release date: €199.99

*Photos show PCB designs in a pre-production phase; variations may occur.
**Subject to final version. Pre-order buyers will receive free software updates, distributed via email. Some features may not be available in early versions of the software, even if they are included with the hardware.
***Some modifications may require us to manipulate the control unit (either software or hardware).

Before purchasing the product, make sure you know that it is a pre-order.
